Our Products
At Bright Control Panels, we are dedicated to providing top-tier control panel solutions tailored to your specific needs. Our range includes high-performance control panels for single-phase and three-phase submersible pumps, as well as specialized TWAD Board control panels, designed for use in water supply systems.

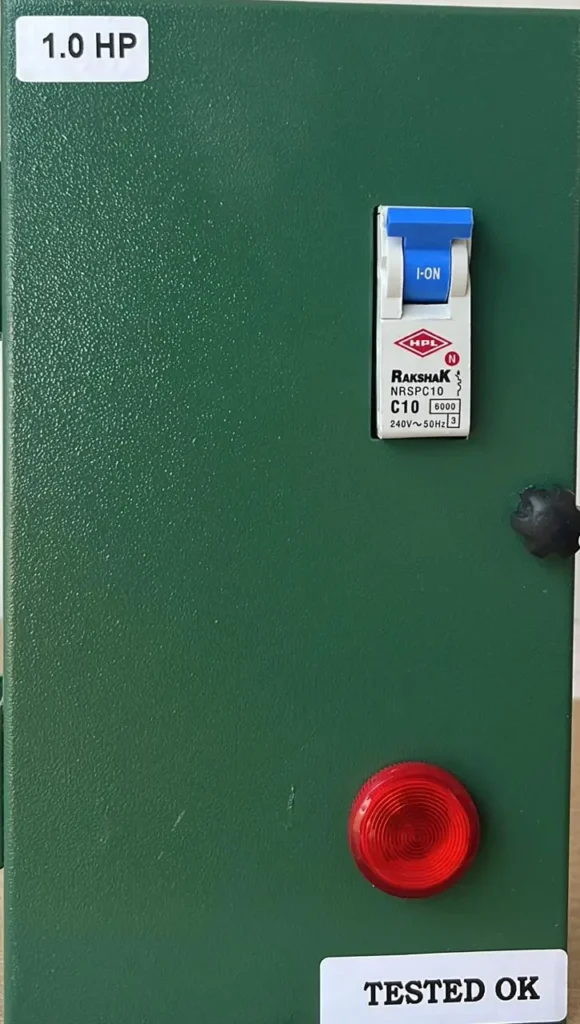

Phase: Single Phase
Model: Running
Type: Openwell
Range: 0.5 HP to 2.0 HP
Components:
- MCB
- Lamp
- Connector
- Running Capacitor
Application:
Domestic Openwell Motors

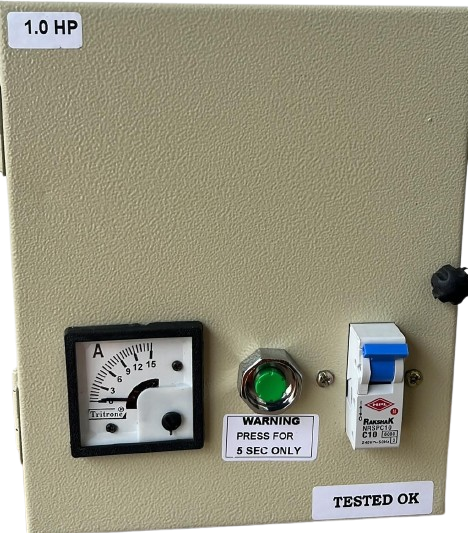

Phase: Single Phase
Model: Running Starting
Type: Openwell
Range: 0.5 HP to 2.0 HP
Components:
- MCB
- Push Button
- Lamp
- Connector
- Running & Start Capacitor
- SR52 Meter
Application:
Domestic Openwell Motors

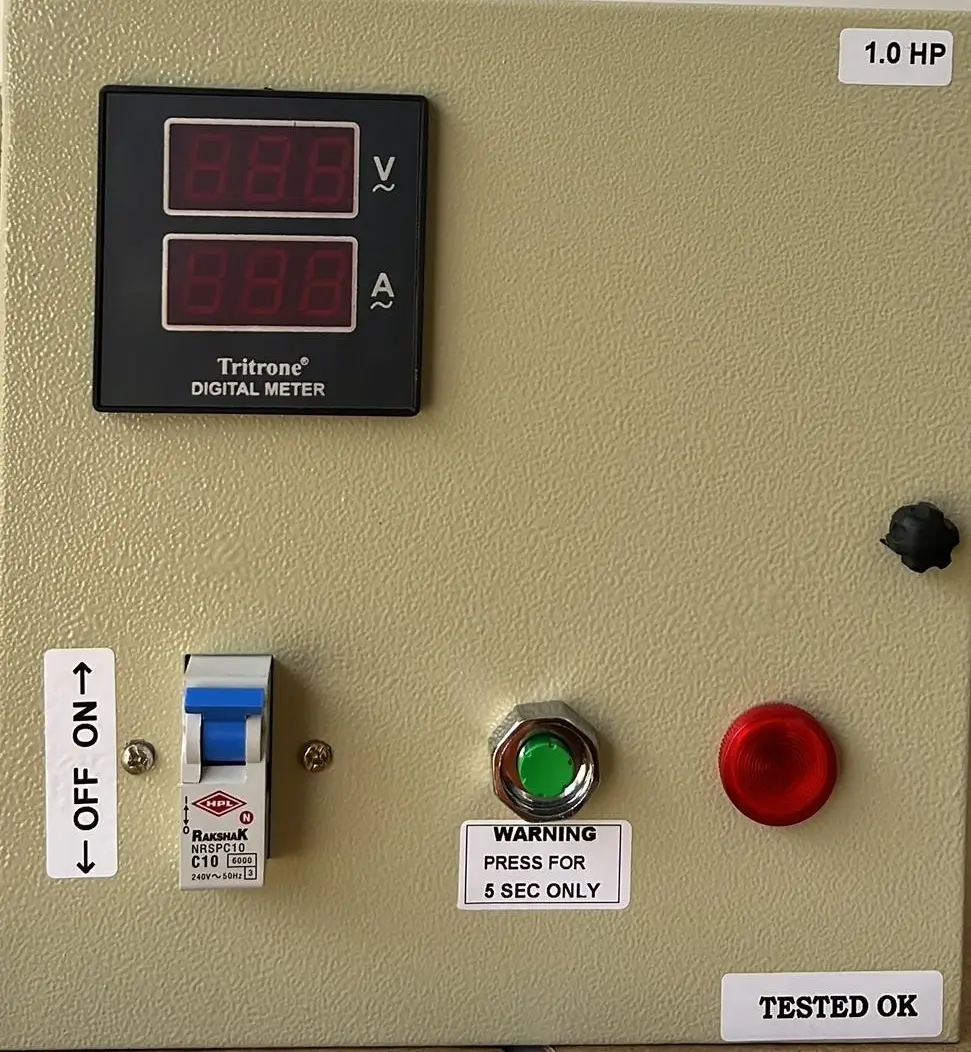

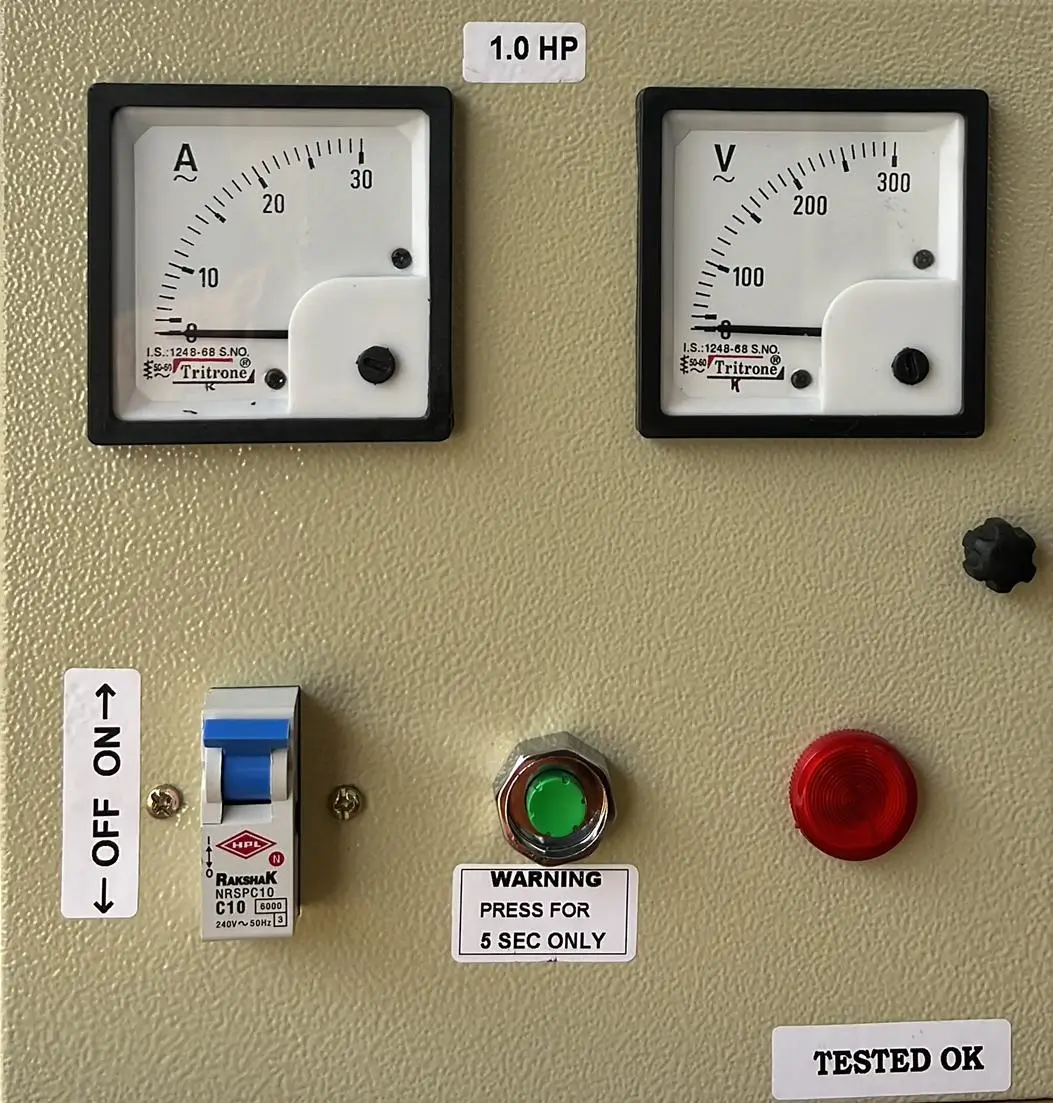

Phase: Single Phase
Model: V4
Type: MCB
Range: 0.5 HP to 3.0 HP
Components:
- MCB
- Push Button
- Lamp
- Connector
- AMPS / Volt Meter
- Run / Start Capacitor
- Digital Meter
Application:
Domestic Submersible Pump Sets

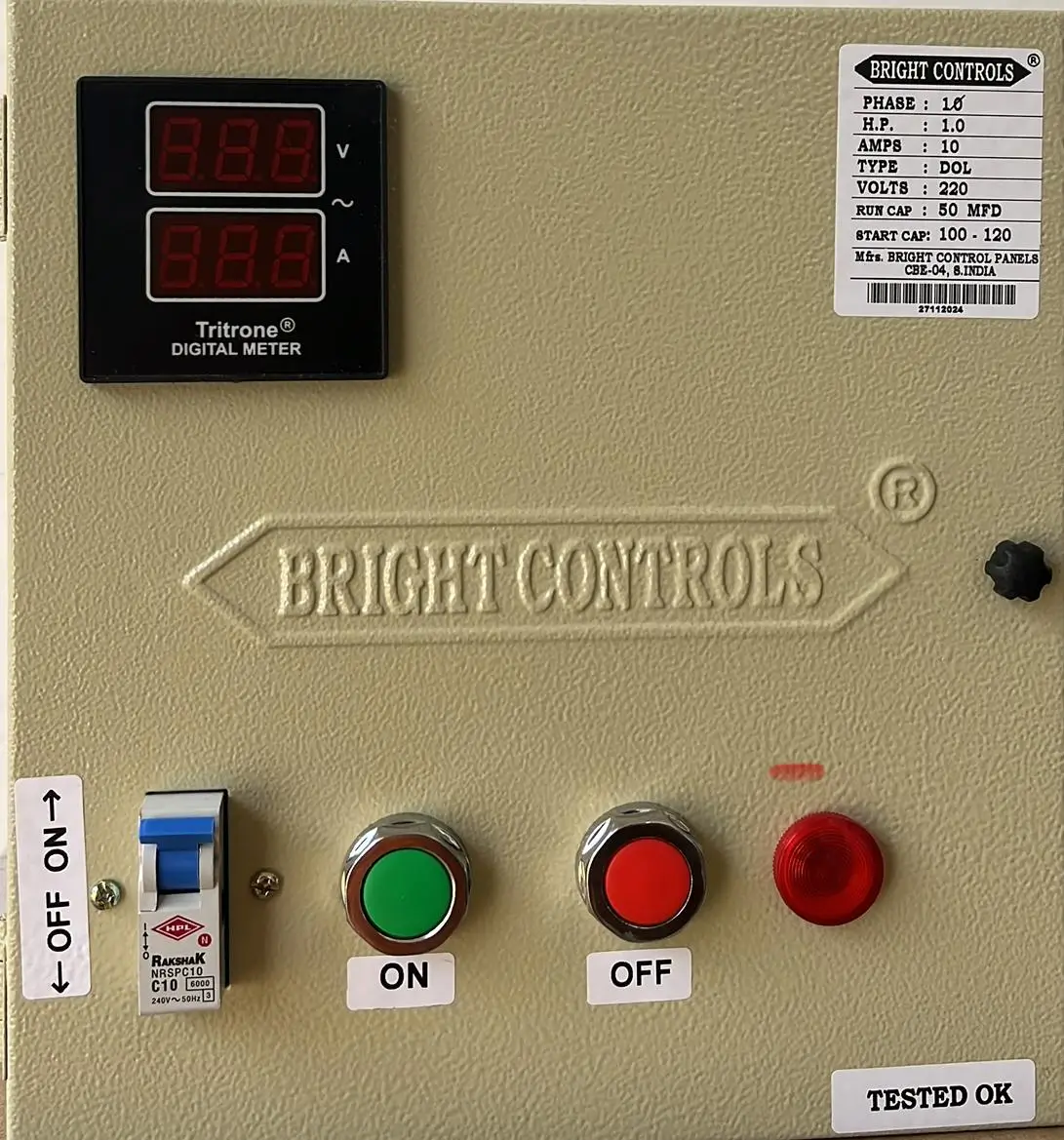

Phase: Single Phase
Model: Contactor
Type: Contact – MCB
Range: 0.5 HP to 3.0 HP
Components:
- AMPS / Volt Meter
- MCB
- On / Off Push Button
- Lamp
- Contactor
- Connector
- Run / Start Capacitor
- BNO
- Digital Meter
Application:
All types of Submersible Pump Sets
Phase: Single Phase
Model: Relay
Type: Contact Relay MCB
Range: 0.5 HP to 3.0 HP
Components:
- AMPS / Volt Meter
- MCB
- On / Off Push Button
- Lamp
- Contactor
- Relay
- Connector
- Running / Start Capacitor
- BNO
Application:
All types of Submersible Pump Sets
Phase: Three Phase
Model: ASPU
Type: D.O.L.
Range: 2.0 HP to 7.5 HP
Components:
- AMPS / Volt Meter
- On / Off Push Button
- VSS
- PNO
- Contactor
- Relay
- Auto Start Preventor
- Connectors
- Lamps
Application:
All types of Submersible Pump Sets

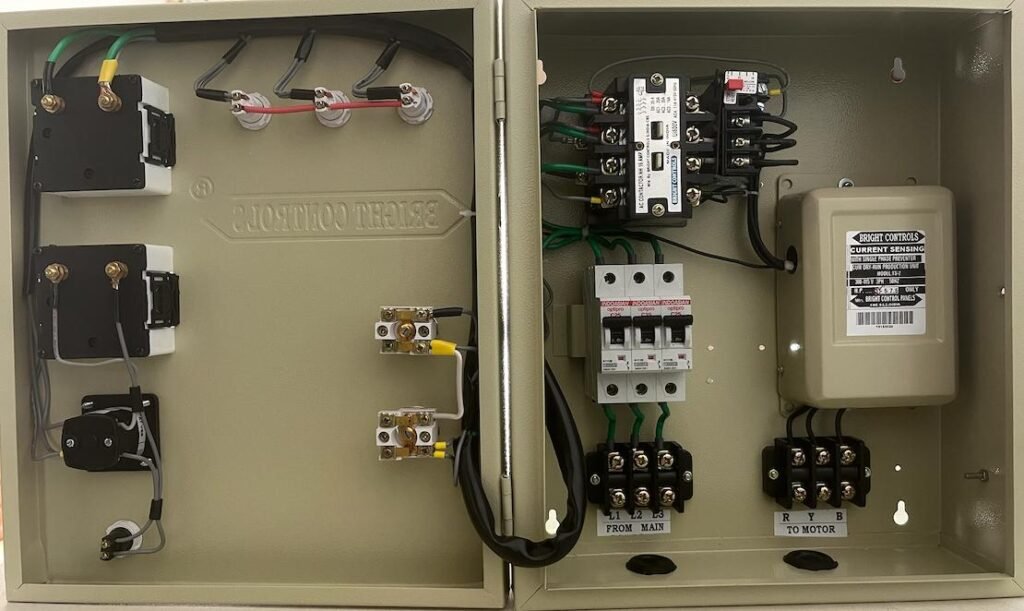

Phase: Three Phase
Model: D.O.L
Type: D.O.L.
Range: 2.0 HP to 7.5 HP
Components:
- AMPS / Volt Meter
- On / Off Push Button
- Lamp
- VSS
- PNO
- Contactor
- Relay
- KVAR
- Connector
- Current Sensing Preventer
Application:
All types of Submersible Pump Sets
Phase: Three Phase
Model: Star Delta
Type: S/D
Range: 3.0 HP to 10.0 HP
Components:
- AMPS / Volt Meter
- On / Off Push Button
- Lamps
- VSS
- PNO
- Contactor
- Relay
- Preventer
- Timer
- Connector
Application:
All types of Submersible Pump Sets
